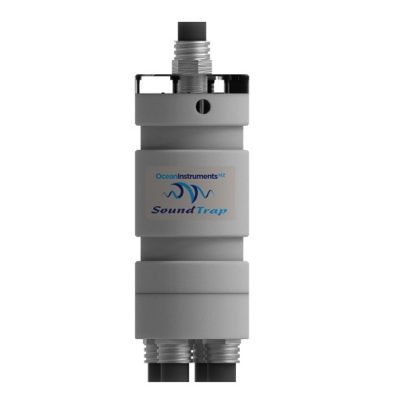

The SoundTrap ST4300HF is a four channel digital acoustic recorder for ocean acoustic research. Its ability to record synchronous audio on four channels make it ideal for creating tetrahedral arrays for sound localisation and particle motion studies.
- Selectable 1 to 4 channel recording
- 4 x individual wet plugs for hydrophones
- 384 kHz x 4 channel sampling
- 150 kHz bandwidth
- Up to 6 days continuous 4 channel recording on internal battery
- Up to 30 days continuous with optional external battery (3 x D cell)
- Simple operation with IR remote control
- Sealed flood proof housing
- 256 GB of memory
- Short term recorder – suitabe for up to 1 month deployment
The ST4300 HF can record signals from up to four hydrophones connected via the four wetplugs on the base of the recorder. The hydrophones are the pre-amplified type, and can be on long cables to enable array spacing’s of several meters. Suitable hydrophones can be specified with various gain and bandwidth options.
An internal battery enables four channel continuous recording for up to 6 days, or 30 days on a 10 minute per hour duty cycle. For longer deployments plug in the optional external battery pack for up to 30 days continuous recording. 256 GB of internal memory coupled with lossless audio compression provides storage for up to 30 days of continuous four channel recording at 32 kHz.
Data offload and battery recharge are done via a wet connector. The housing therefore never needs opening, thereby eliminating worries about o’ring maintenance and moisture ingress.
Output files are in the industry standard WAV format. Ancillary sensors are included for logging temperature and tri-axial acceleration. The included software offers flexible deployment options for channel selection, sample rate, delayed start and duty cycle.
For further details see the spec here.
Important note – Hydrophones are NOT included with the ST4300HF. These must be sourced from a third party such as High Tech Inc, USA. Please discuss your requirements with them directly.
The SoundTrap ST4300HF recorder currently has a 10 week production lead time. Please contact us to confirm.
